4S/NW/W/BP "

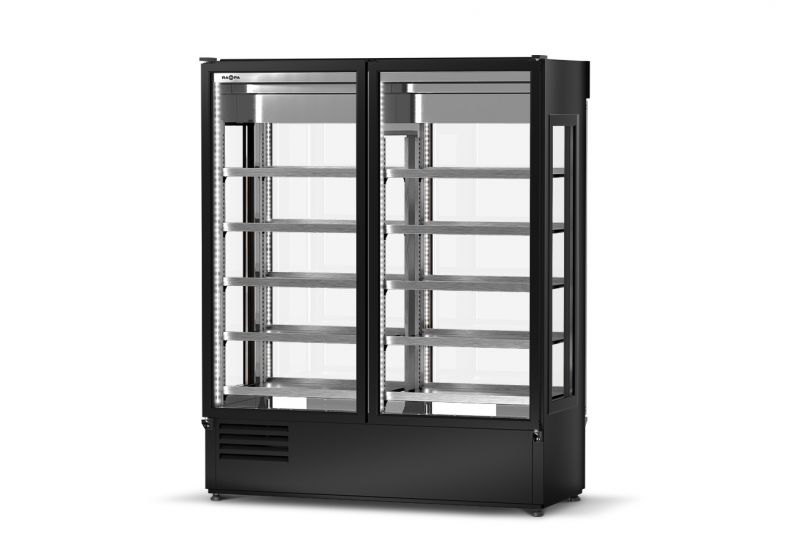

Refrigerated cabinet glazed on 4 sides, without partition. Equipped with a set of 10 double-sided stainless steel solid shelves on and a set of price strips that can be placed on both sides of the shelf.
Device features
Finish available
RAL 9005 Jet black - semi-mat

Side of the cabinet

The cabinet open from the service side
RAL 9003 Signal white - gloss
RAL 9005 Jet black - gloss
RAL 1015 Light ivory - gloss
RAL 5002 Ultramarine blue - gloss
RAL 1001 Beige - gloss

szafa Cargo na samochodzie i w magazynie

Perfect display

All of the walls of the 4S cabinet have been glazed, so that the product you place inside is perfectly visible to the customer from all sides.

Spacious interior without partition

In designing the 4S cabinet, we dispensed with the internal partition, giving you even more space for your products, which you can conveniently arrange on the generous shelves.

podstawa w szafie Cargo
kratka osłaniajaca skraplacz w szafie Cargo

Solid, double-sided shelves in stainless steel

Thanks to the stable solid shelves made of stainless steel, even small assortments can be placed in the cupboard without any problems.

Price strips on both sides of the device

The advantage of the double-sided shelves in this model is that you can mount the price bars on both sides.

korpus ze stali nierdzewnej
ozdobny motyw kwiatowy

Lighting on all sides

We have mounted up to 8 LED lighting strips in the 4S cupboard to further highlight the goods inside the device. You can opt for either a cold white or warm white lighting colour, depending on the assortment you want to store in the cabinet.

Stainless steel interior

Both the structure and the bottom of the storage chamber are made of mirror-type stainless steel. This guarantees the high durability and aesthetics of the device.

rozsuwane drzwi


Standard equipment

Refrigerating unit

  • icon
    3rd climatic class
  • icon
    Plug-in unit powered with ecological R-290 refrigerant
  • icon
    Fan assisted cooling
  • icon
    Electronic temperature controller with display
  • icon
    Condensate drain into the container

Housing

  • icon
    Glazed, hinged door
  • icon
    Housing painted in colour chosen from the RAPA colour chart
  • icon
    Vent lockable with magnet
  • icon
    Adjustable legs
  • icon
    All panes made of low-E combined glass, double tempered
  • icon
    Device glazed from four sides

Interior

  • icon
    Bottom of the storage chamber made of "mirror" stainless steel
  • icon
    Guide of stainless steel for mounting shelves supports
  • icon
    LED lighting
    cold white or warm white
  • icon
    Interior made of stainless steel "mirror" type
  • icon
    Interior of upright cabinet without partition

Shelves

  • icon
    Set of stainless steel shelves with supports - 10 pcs.
Show equipment detailsHide details

Additional equipment

Refrigerating unit

  • icon
    Automatic condensate evaporation system
  • icon
    Device without aggregate
  • icon
    Protection of the evaporator with a preservative coating
  • icon
    Thermostatic expansion valve R404a / R452a - vailability and price upon agreement

Housing

  • icon
    Set of 4 wheels with regulated foot
  • icon
    Adjustable legs made of stainless steel
    Legs adjustable in the range of 87 - 97 mm
  • icon
    Self-closing system of hinged door
  • icon
    Lock for hinged door (from the service side)

Interior

  • icon
    4 automatic ventilator switches with open door indication in single cabinets
  • icon
    Reinforced bottom in device chamber
  • icon
    Stainless steel shelf support strip
  • icon
    LED lighting under shelves for 4S cooler

Shelves

  • icon
    Additional stainless steel shelf
  • icon
    Additional stainless steel painted shelf
  • icon
    Support for shelf

Accessories

  • icon
    Pollen filter (reusable)
  • icon
    Shelf edge strip (transparent)
  • icon
    Container basis EURO 2
    In cabinets of dimensions 825 and 1600
  • icon
    USB temperature recorder (wireless)
  • icon
    Door handle
Show equipment detailsShow equipment details


Parameters
climatic class 3
temperatures range +1°C ÷ +10°C
refrigerant (HC) R-290
rated voltage 230 V~ / 50 Hz
rated power 420 W ÷ 440 W
defrosting automatic

model 4S 1200 4S 1400 4S 1600
width [cm] 120 140 160
depth [cm] 72 72 72
height [cm] 200 200 200
interior width [cm] 2x50,5 2x60,5 2x70,5
interior depth [cm] 62 62 62
interior height [cm] 145,5 145,5 145,5
usable capacity [l] 898 1070 1242
