L-A

lada chłodnicza L-A frontem w kolorze niebieskim
Lada chłodnicza z hartowaną dzieloną szybą prostą ukośną. W standardzie z białym korpusem, szarymi bokami i wnętrzem przechowalnika ze stali nierdzewnej.
Device features
Available colours
RAL 9003 Signal white - gloss
Tył urządzenia chłodniczego
Tył urządzenia chłodniczego
Tył urządzenia
RAL 9005 Jet black - gloss
RAL 5002 Ultramarine blue - gloss
RAL 3020 Traffic red - gloss
RAL 1021 Rape yellow - gloss

Standard equipment

Refrigerating unit

  • icon
    3rd climatic class
  • icon
    Plug-in unit powered with ecological R-290 refrigerant
    R290 refrigerant with zero ODP (Ozone Depletion Potential) and very low GWP (Global Warming Potential)
  • icon
    Gravitational cooling
  • icon
    Electronic temperature controller with display from the service side
  • icon
    Defrost water collection container

Housing

  • icon
    Sides made of grey laminated board
  • icon
    Coloured finish of the device front
  • icon
    Housing painted in white colour from the RAPA colour chart
  • icon
    Adjustable legs
  • icon
    Double electric socket from the service side on the right side of the device
  • icon
    Front finish with grey bumpers of soft PVC

Worktop

  • icon
    Worktop made of grey laminated board of the width of 28 cm

Exposition

  • icon
    Internal top made of stainless steel equipped with soft bumpers
  • icon
    External top made of glass
  • icon
    Divided bottom of the exposition made of "mirror" stainless steel (pulled out segments)
  • icon
    Electronic thermometer on the customer side
  • icon
    LED lighting adapted for goods

    LED lamp for exposure lighting - meat or dairy

  • icon
    Front glass pane divided, straight
  • icon
    All panes made of tempered glass
  • icon
    Night covers

Storage

  • icon
    Non-threshold storage bottom made of stainless steel
  • icon
    Door of storage in the same colour as housing with magnetic gasket
  • icon
    Uncooled space under the storage, next to the aggregate
Show equipment detailsHide details

Additional equipment

Refrigerating unit

  • icon
    Automatic condensate evaporation system
  • icon
    Glass panes drainage system
  • icon
    Device without aggregate
  • icon
    Protection of the evaporator with a preservative coating

Housing

  • icon
    Set of 4 wheels with regulated foot
  • icon
    Painting of housing in RAL colour from the RAPA colour chart
  • icon
    Painting of housing in any of RAL colour
  • icon
    Housing made of stainless steel
  • icon
    Legs masking
  • icon
    Order and mountage of double electric socket
  • icon
    Order counter without double electric socket
  • icon
    Change the side of double electric socket mountage - left side of the device

Worktop

  • icon
    Grinded stainless steel
  • icon
    Grinded stainless steel, widened
  • icon
    "Linen" stainless steel
  • icon
    "Linen" stainless steel, widened
  • icon
    Granite
  • icon
    Granite, widened
  • icon
    Laminated board, widened

Exposition

  • icon
    Sloping bottom of the exposition area (only for a depth of 107 cm)
  • icon
    Shelf in the exposition area made of tempered glass (non-refrigerated)
  • icon
    Exposure partition made of tempered glass (permanently fixed)

Storage

  • icon
    Storage partition (permanently fixed)
  • icon
    Shelf under storage (non-refrigerated)
    Available from a length over 125 cm.

Accessories

  • icon
    Cutting board
  • icon
    Pollen filter (reusable)
  • icon
    Cascade made of "mirror" stainless steel of the depth of 33 cm
    Applies to counters 107 cm deep.
  • icon
    Front shelf for customer - railing
    For models E, E Max, E1, E1 Max, F, F Max: to be ordered only at the production stage. In other models as an accessory.
  • icon
    Exposure partition made of transparent PET (movable)
  • icon
    Exposure partition made of tempered glass (movable)
  • icon
    USB temperature recorder (wireless)
  • icon
    Night cover made of PET
Show equipment detailsShow equipment details


Parameters
temperatures range +1°C ÷ +10°C (3 cl.)
refrigerant (HC) R-290
rated voltage 230 V~ / 50 Hz
rated power 245 W ÷ 400 W
defrosting automatic
model A 122/82 A 137/82 A 152/82 A 179/82 A 201/82
counter lenght [cm] 122 137 152 179 201
exposition lenght [cm] 114 129 144 171 193
counter depth [cm] 82 82 82 82 82
exposition depth [cm] 40,5 40,5 40,5 40,5 40,5
counter height [cm] 122 122 122 122 122
exposition height [cm] 18 18 18 18 18

model A 122/90 A 137/90 A 152/90 A 179/90 A 201/90
counter lenght [cm] 122 137 152 179 201
exposition lenght [cm] 114 129 144 171 193
counter depth [cm] 90 90 90 90 90
exposition depth [cm] 49 49 49 49 49
counter height [cm] 122 122 122 122 122
exposition height [cm] 18 18 18 18 18

model A 122/107 A 137/107 A 152/107 A 179/107 A 201/107
counter lenght [cm] 122 137 152 179 201
exposition lenght [cm] 114 129 144 171 193
counter depth [cm] 107 107 107 107 107
exposition depth [cm] 65,5 65,5 65,5 65,5 65,5
counter height [cm] 122 122 122 122 122
exposition height [cm] 18 18 18 18 18

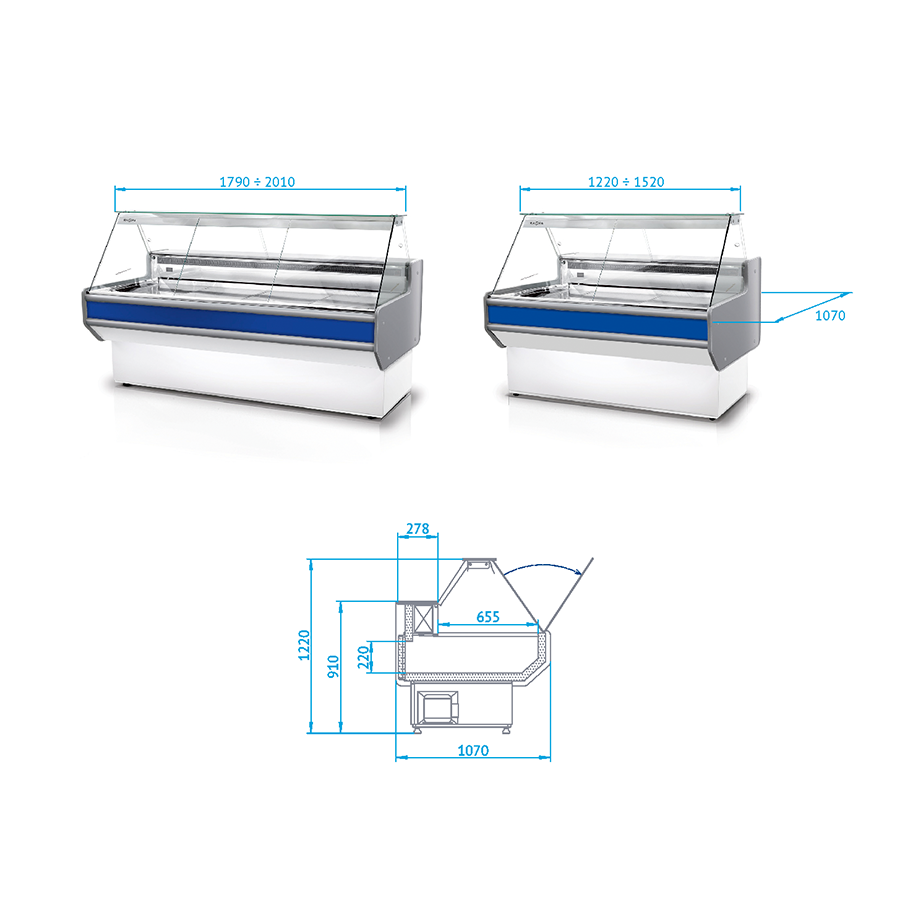

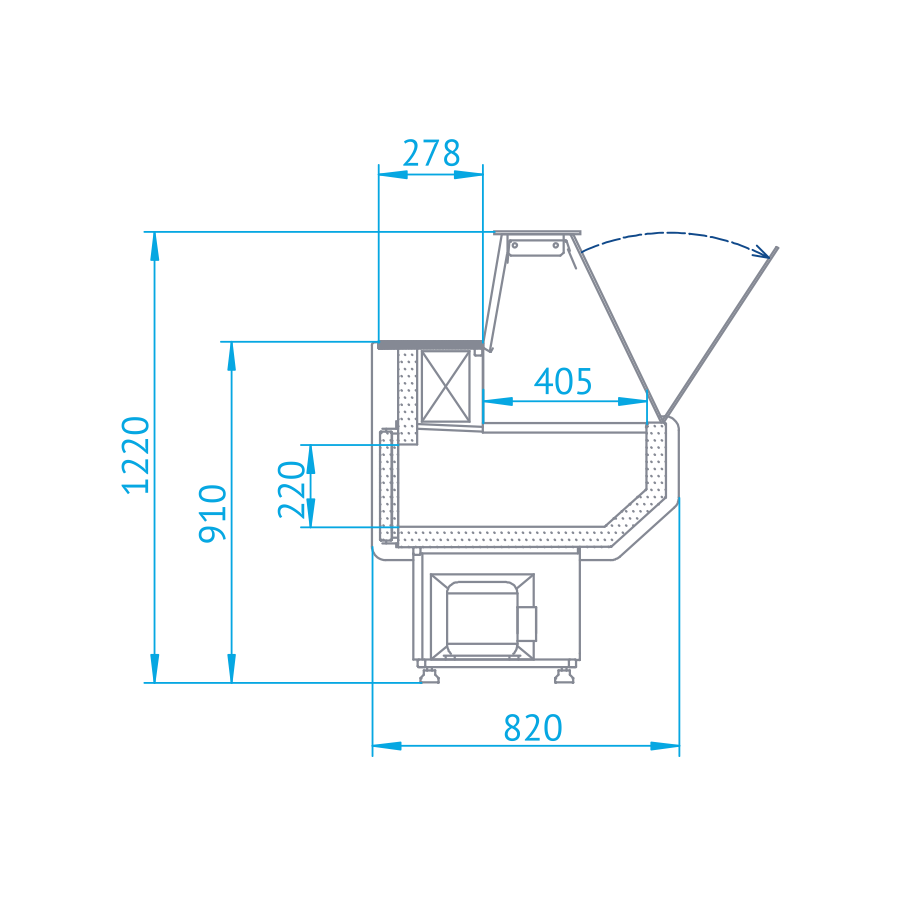

Technical drawings
