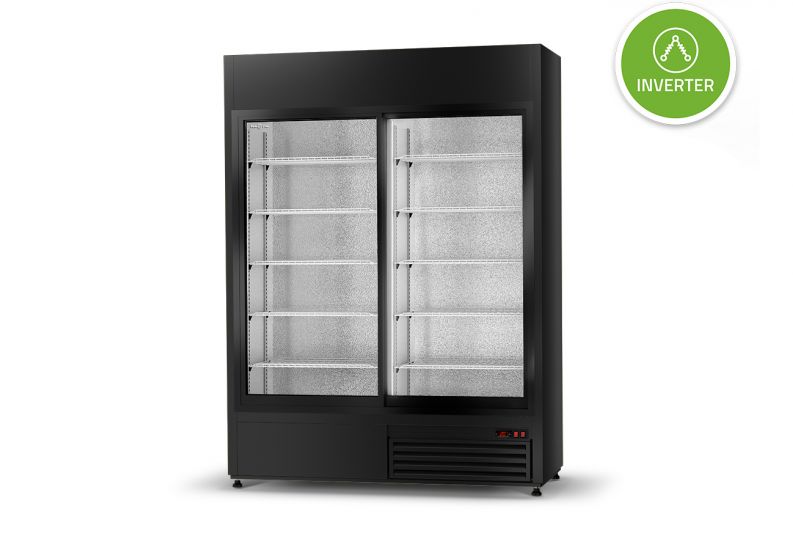

SR/WH "

Device features
Available colours
Black Grey RAL 7021 mat

The EUR prices are the guide prices only and are an estimate based on exchange rate. Please contact our Customer Service Department to receive a detailed information about the current prices.

Standard equipment

Refrigerating unit

  • icon
    3rd climatic class
  • icon
    Plug-in unit
  • icon
    Fan assisted cooling (dynamic)
  • icon
    R-290 ecological refrigerant
  • icon
    Electronic temperature controller with display, setting range: 0°C ÷ +13°C
  • icon
    Automatic condensate evaporation system

Housing

  • icon
    All panes made of low-E combined glass, double tempered
  • icon
    Vent lockable with magnet
  • icon
    Adjustable legs
  • icon
    Housing painted in colour RAL 7021 matt or in colour chosen from the RAPA colour chart
  • icon
    Glazed, sliding door

Interior

  • icon
    LED lighting
    barwa biała zimna lub biała ciepła
  • icon
    Bottom of the storage chamber made of "mirror" stainless steel
  • icon
    Guide of stainless steel for mounting shelves supports

Shelves

  • icon
    Set of plasticized dense shelves with supports - 10 pcs.
  • icon
    Shelf edge strips - 10 pcs.
Show equipment detailsHide details

Additional equipment

Refrigerating unit

  • icon
    Condensate drain into the container
  • icon
    Cataphoretic coating of the evaporator
  • icon
    Device without aggregate
    wyłącznie w urządzeniach z czynnikiem R 507 produkowanych do końca 2020 roku

Housing

  • icon
    Powder-painting of housing in any of RAL colour
  • icon
    Lock for sliding door (from the service side)

Interior

  • icon
    Set of dense shelves made of stainless steel in upright refrigerated cabinet
  • icon
    Interior made of stainless steel (NW) for S and SR models

Shelves

  • icon
    Dense shelf for upright refrigerated cabinet
  • icon
    Dense shelf made of stainless steel for upright refrigerated cabinet
  • icon
    Support for shelf
  • icon
    Perforated pad made of grinded stainless steel to be applied on shelf

Accessories

  • icon
    USB temperature recorder (wireless)
  • icon
    Shelf edge strip (transparent)
  • icon
    Pollen filter (reusable)
Show equipment detailsShow equipment details


Parameters
climatic class 3
temperatures range +1°C ÷ +10°C
refrigerant (HC) R-290
rated voltage 230 V~ / 50 Hz
rated power 550 W ÷ 580 W
defrosting automatic
evaporation of condensate automatic

model SR 1200/WH SR 1600/WH
width [cm] 120 160
depyh [cm] 74,5 74,5
height [cm] 219 219
interior width [cm] 2x50,5 2x70,5
interior depth [cm] 62 62
interior height [cm] 152,5 152,5
usable capacity [l] 954 1333


Technical drawings


Catalogues and products cards
There are no files in this category
Price lists
Name
Size
Actions
01-30_CENNIK_RAPA_Producent Urzadzen Chlodniczych_PL_2020v1
2,706 KB
02_CENNIK_RAPA_spis tresci - opis kodow_PL_2020v1
1,397 KB
18_CENNIK_RAPA_szafy chlodnicze jednostronnie przeszklone - standardowe i podwyzszone_PL_2020v1
1,447 KB
21_CENNIK_RAPA_wyposazenie dodatkowe i akcesoria do szaf chlodniczych_PL_2020v1
1,381 KB
Solids
There are no files in this category
User manuals
There are no files in this category
Certificates of conformity
There are no files in this category
Colour chart
There are no files in this category
Technical drawings
Films
There are no films in this category

Check also

Service vademecum #2 - replacement of the temperature controller

May 14, 2020 00:00

Welcome to the next service handbook. In today's installment, we will replace the temperature controller. The exchange is relatively simple but it is worth emphasizing that it should be carried out by a person with electrical qualifications. We have prepared the guide in the form of a short step-by-step description and video material.

Replacing the temperature controller

krok 1

Turn off the device

Before replacing the temperature controller, turn off the device using the main switch. Then turn off the device from the power supply.

Disassemble the temperature controller

With a flat, small screwdriver, we gently pry up the housing frame. Then unscrew the screws with a Phillips screwdriver. Gently remove the controller.

krok 2
krok 3

Disconnect the temperature controller

Before replacing the controller, it is worth taking a photo of it, which will help us connect the cubes in the correct order. After taking the picture, we can detach the cubes from the controller.

We plug in a new temperature controller

In the new controller, we connect the cubes in the correct order. Let's make sure they snap properly. After this action, the controller is inserted into the mounting hole and tightened again gently by making a few turns with a Phillips screwdriver. Then we put on the protective frame. The device can be switched back to the power supply and turned on by the main switch.

krok 4






See the video guide






RAPA new in offer - LK-SiX/X cash counter

May 14, 2020 00:00
Dear Sirs,


Service vade mecum #1

April 28, 2020 00:00

Welcome to the service vade mecum. We are starting a thematic cycle in which we will focus on the most important service and maintenance works that will be useful to both professional service technicians and owners of refrigeration equipment. A little "basics" to get you started.



What is worth remembering?

skraplacz

Cleaning the condenser

First of all, remember to clean the condenser regularly. With a clean condenser, we avoid compressor breakdowns, prevent excessive energy consumption,
and ensure adequate cooling capacity.

A large amount of ice accumulates on the evaporator

Perform the following actions:

  1. take out the goods,
  2. carry out the defrosting process by turning the device off until the ice melts,
  3. pay attention to the condition of condensate in the container to prevent water from spilling onto the floor,
  4. turn the device on again.
oszroniony parownik
błąd E1

E1 message on the display

Perform the following actions:

  1. defrost the device if possible by manually switching off the unit for 30-40 minutes.
  2. repeat activity 2-3 times a day.






Cleaning condensers in upright refrigerated cabinets
with top and bottom mounted unit
