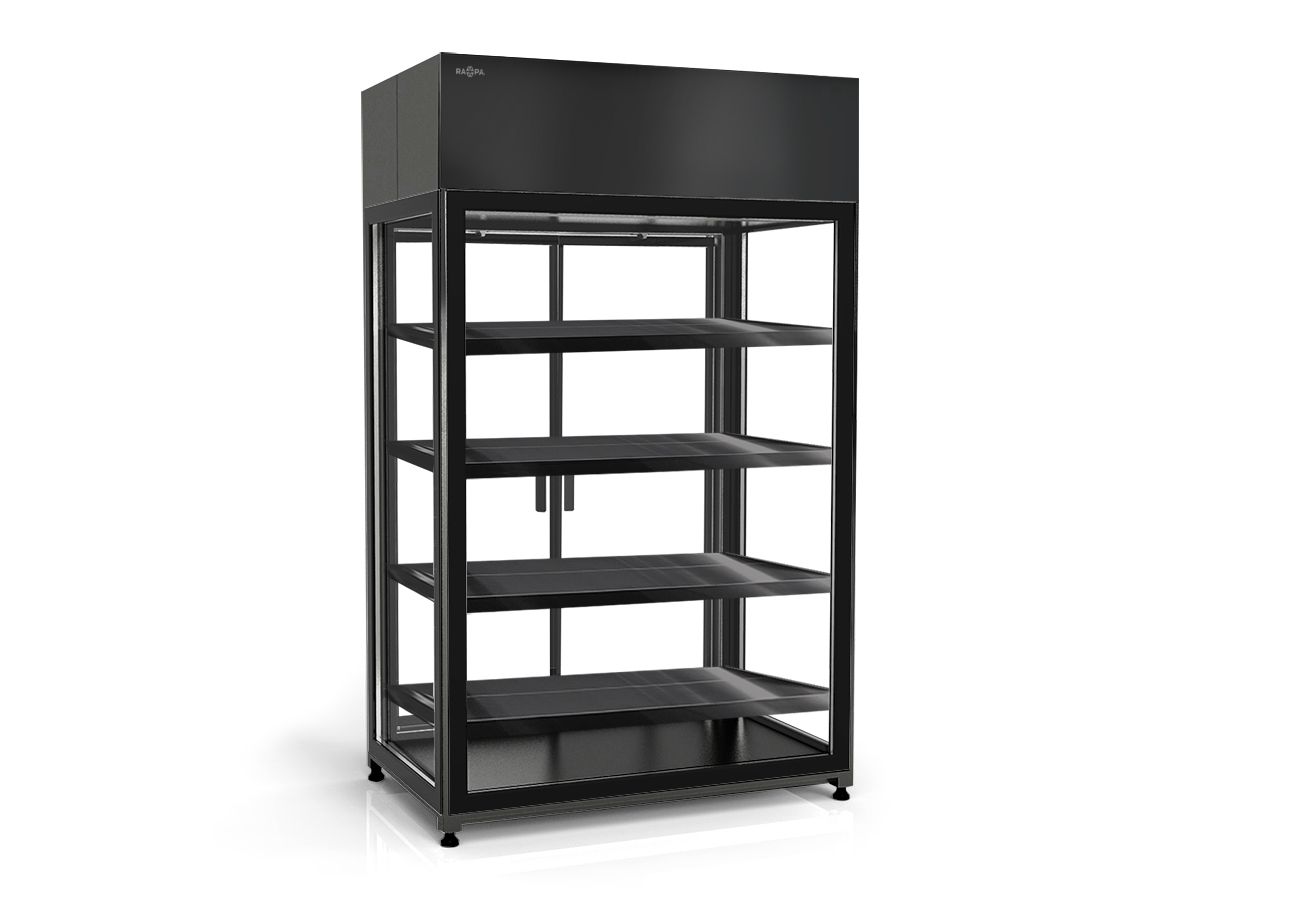

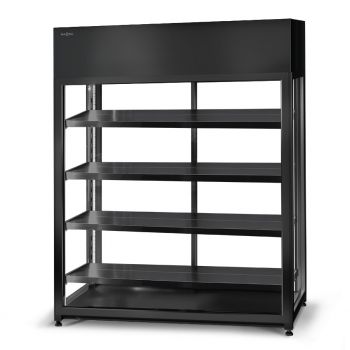

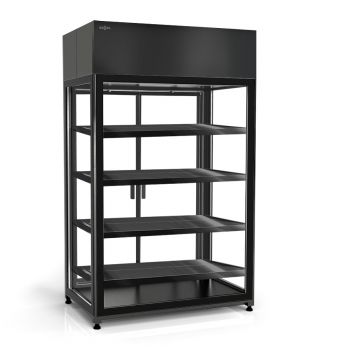

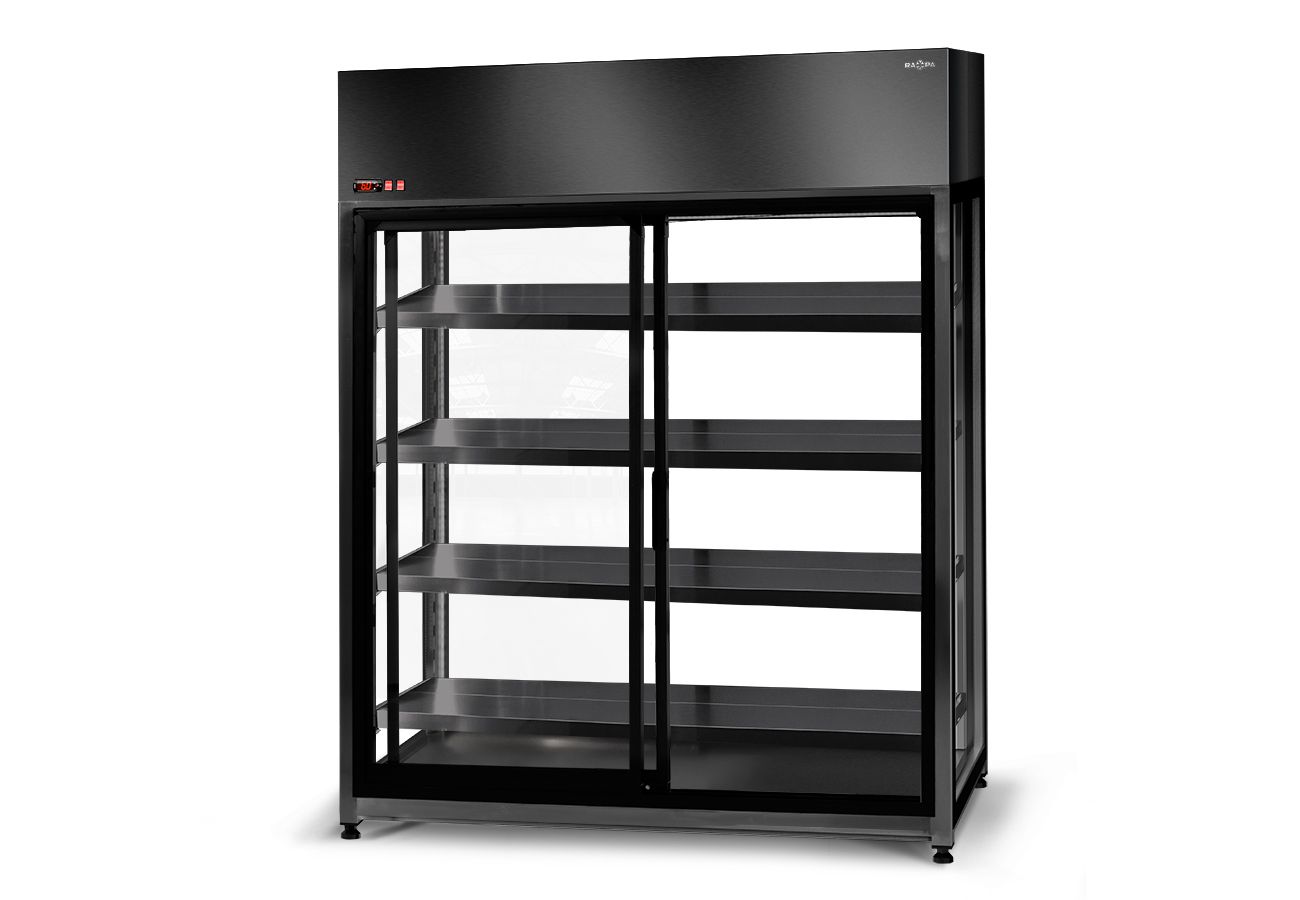

AKM

AKM display cases are devices that provide confectionery and food products with optimal storage conditions, not only preserving their freshness but also showcasing them in an excellent way.
Device features
Finish available

Plug-in - Inverter unit

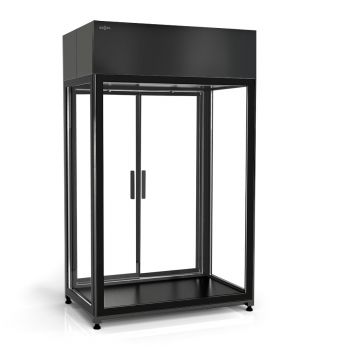

Sliding door

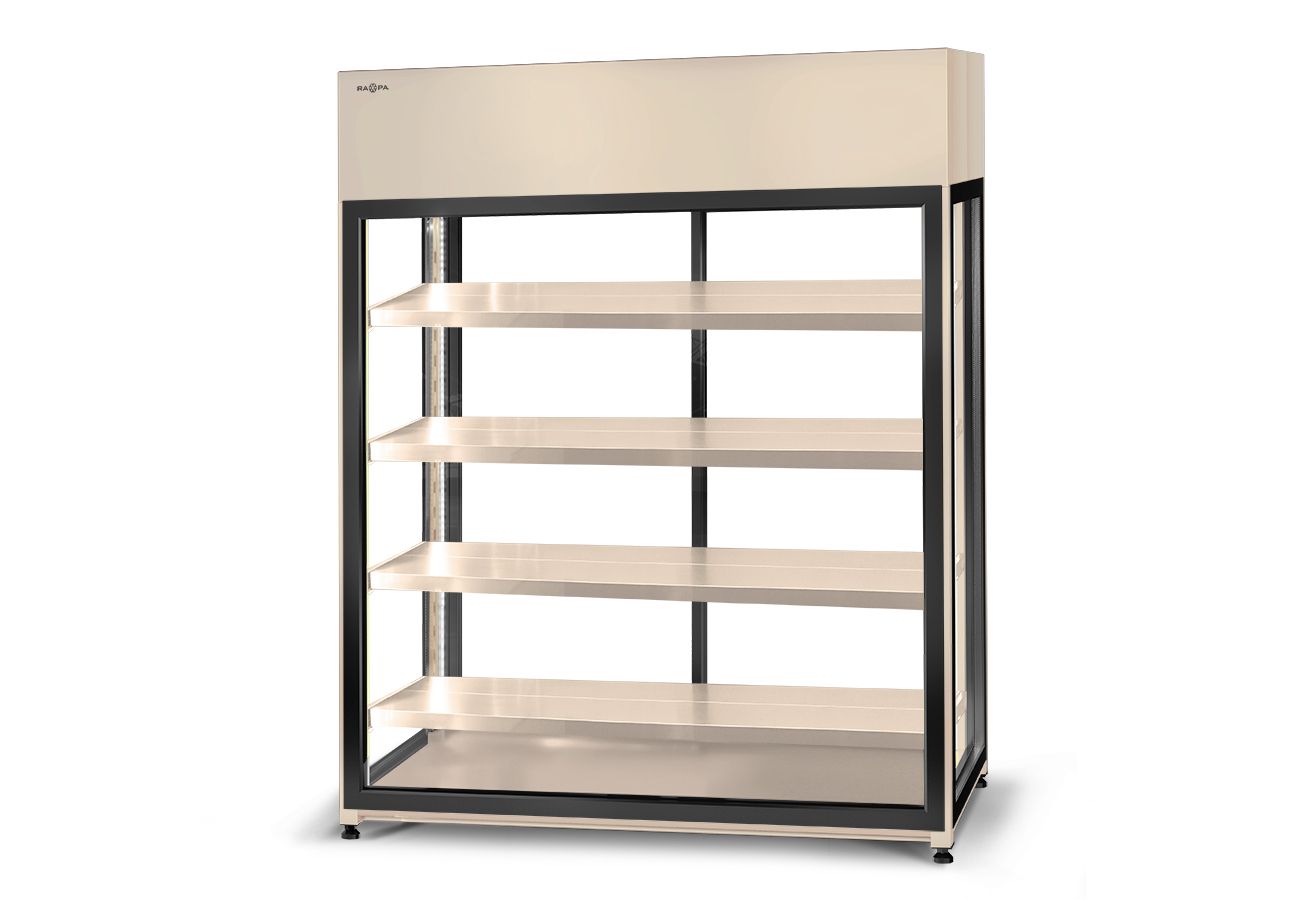

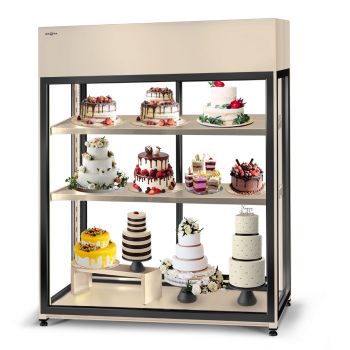

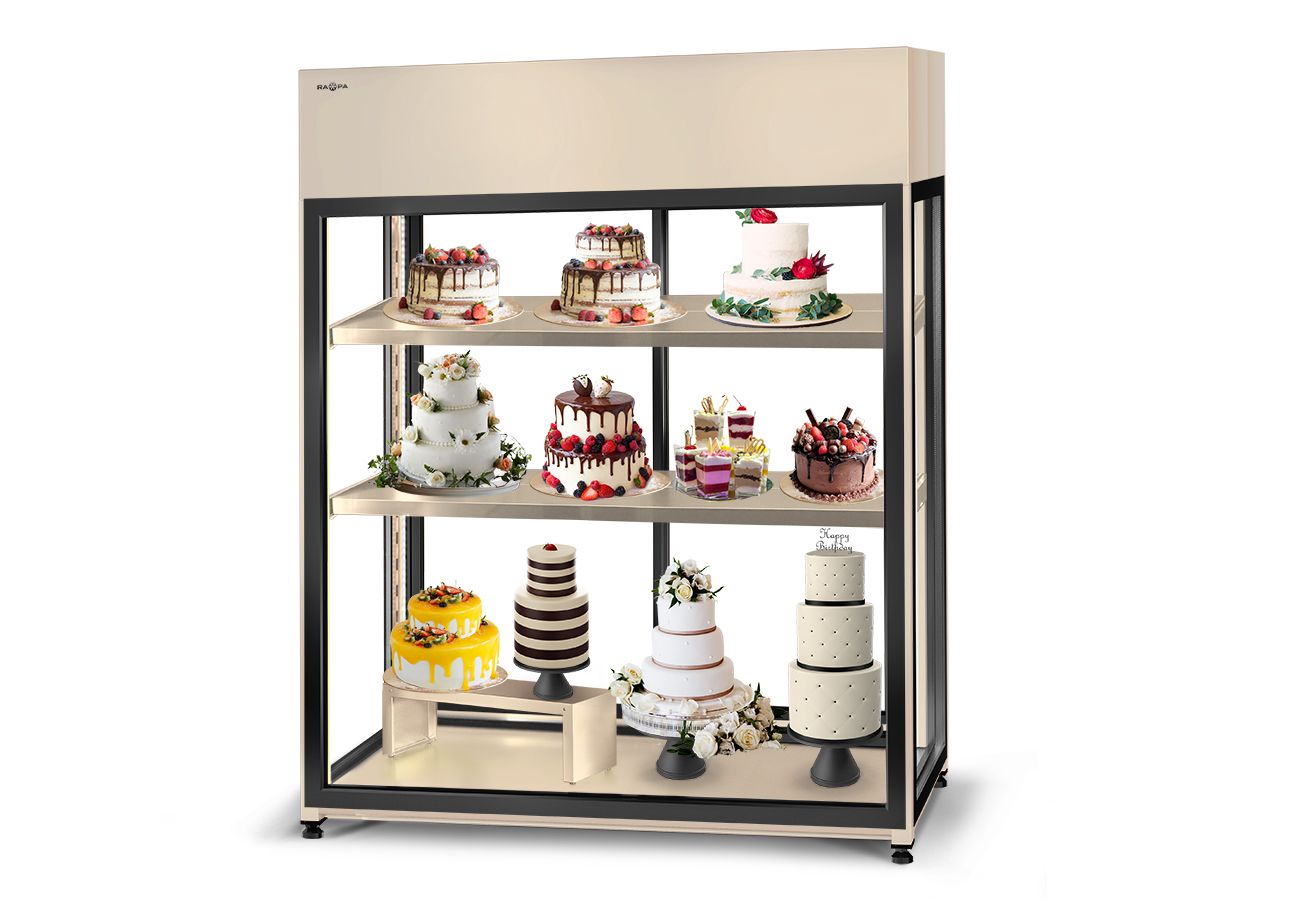

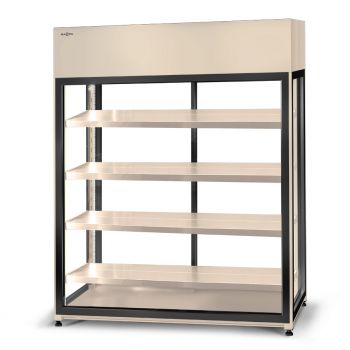

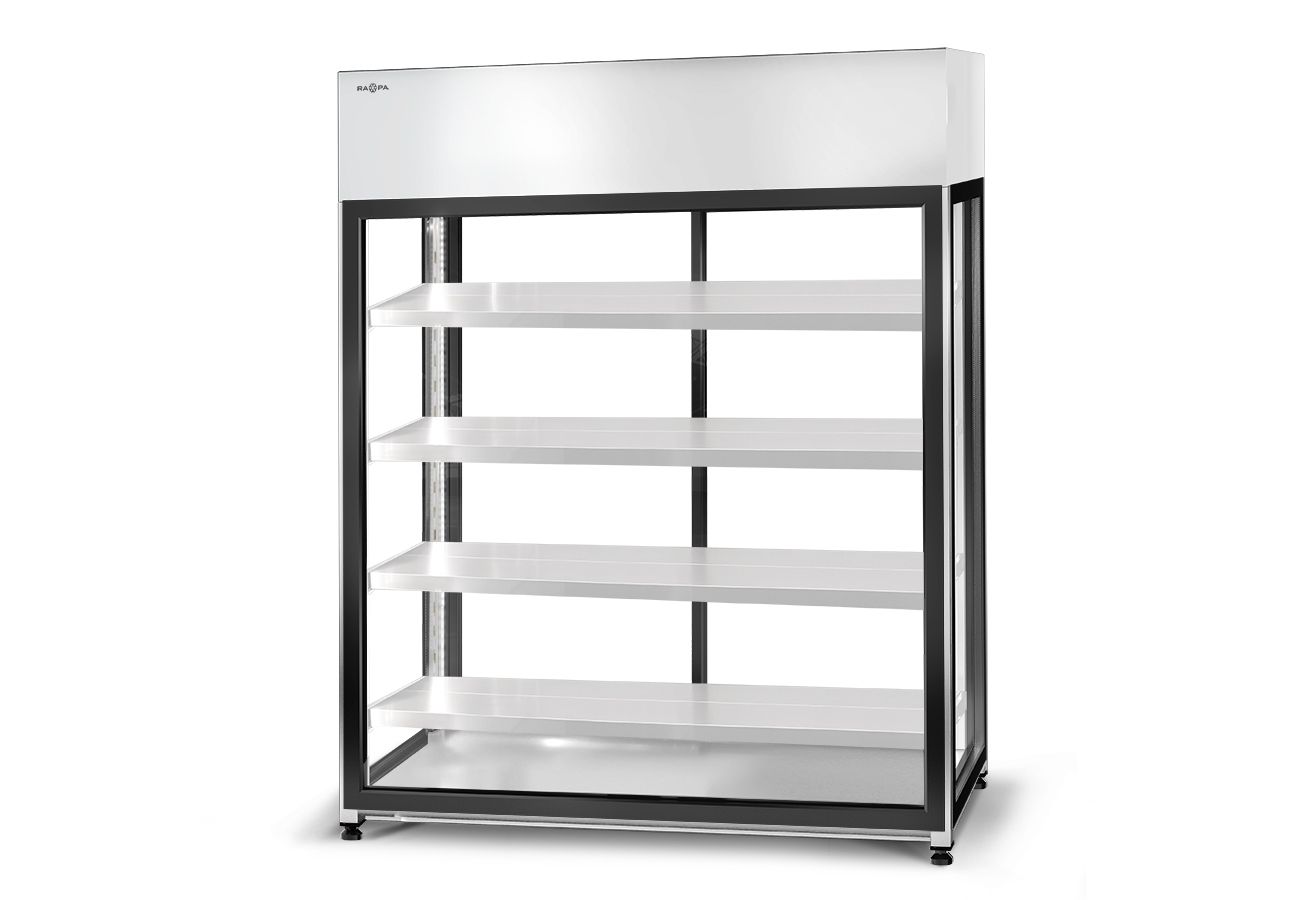

RAL 1015 Light ivory - gloss

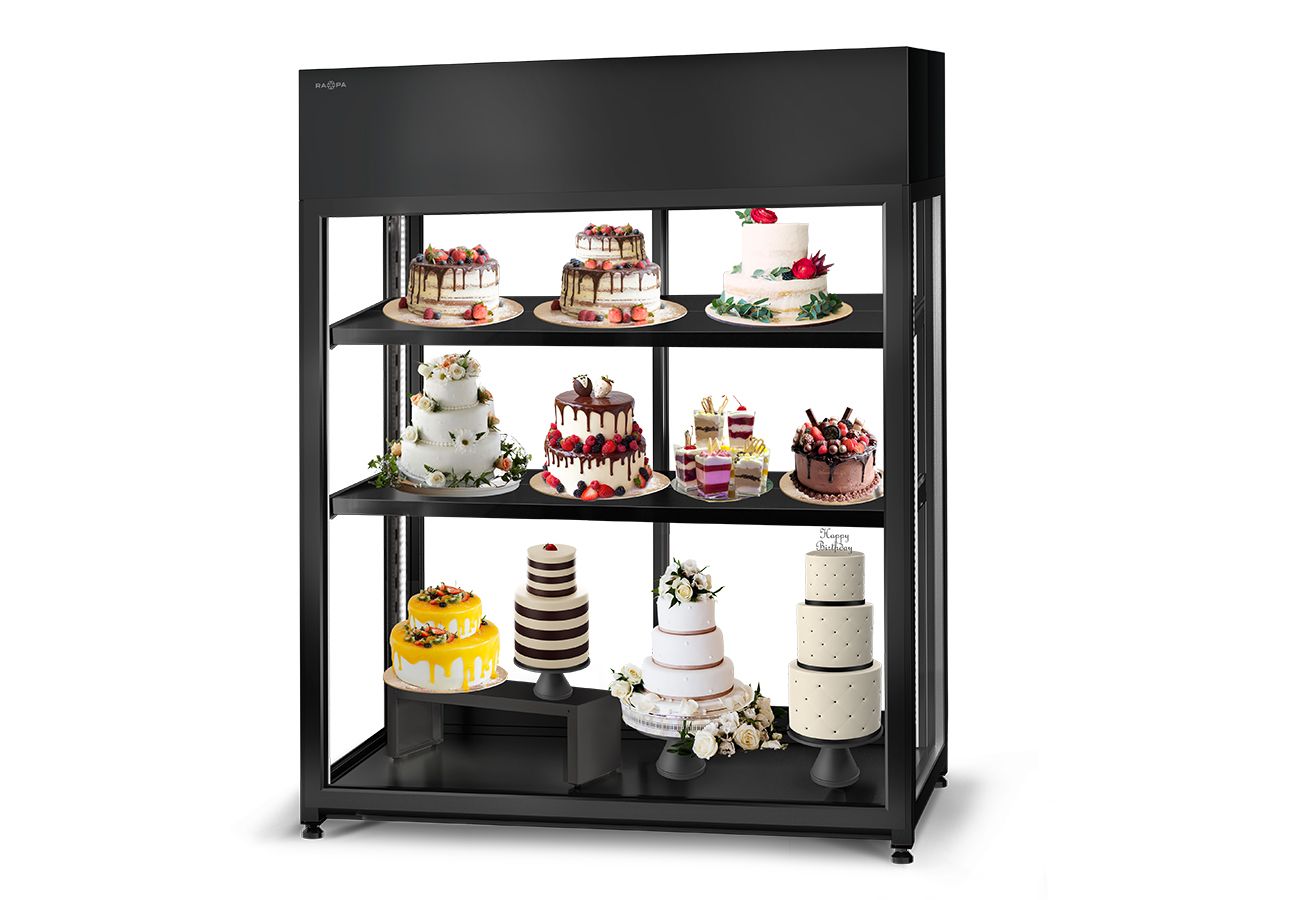

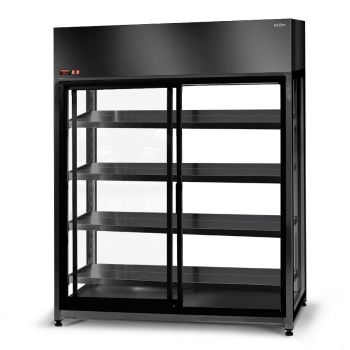

RAL 9005 Jet black - semi-mat

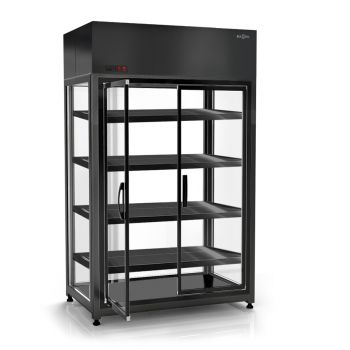

Hinged doors

Standard equipment

Refrigerating unit

  • icon
    3rd climatic class
  • icon
    Inverter internal unit
  • icon
    Fan assisted cooling (dynamic)
  • icon
    Electronic temperature controller with display

Housing

  • icon
    Housing painted in one of the colours chosen from the RAPA colour chart
  • icon
    Adjustable legs

Exposition

  • icon
    Bottom of the storage chamber made of “linen” stainless steel, painted in a selected color from the RAPA color chart
  • icon

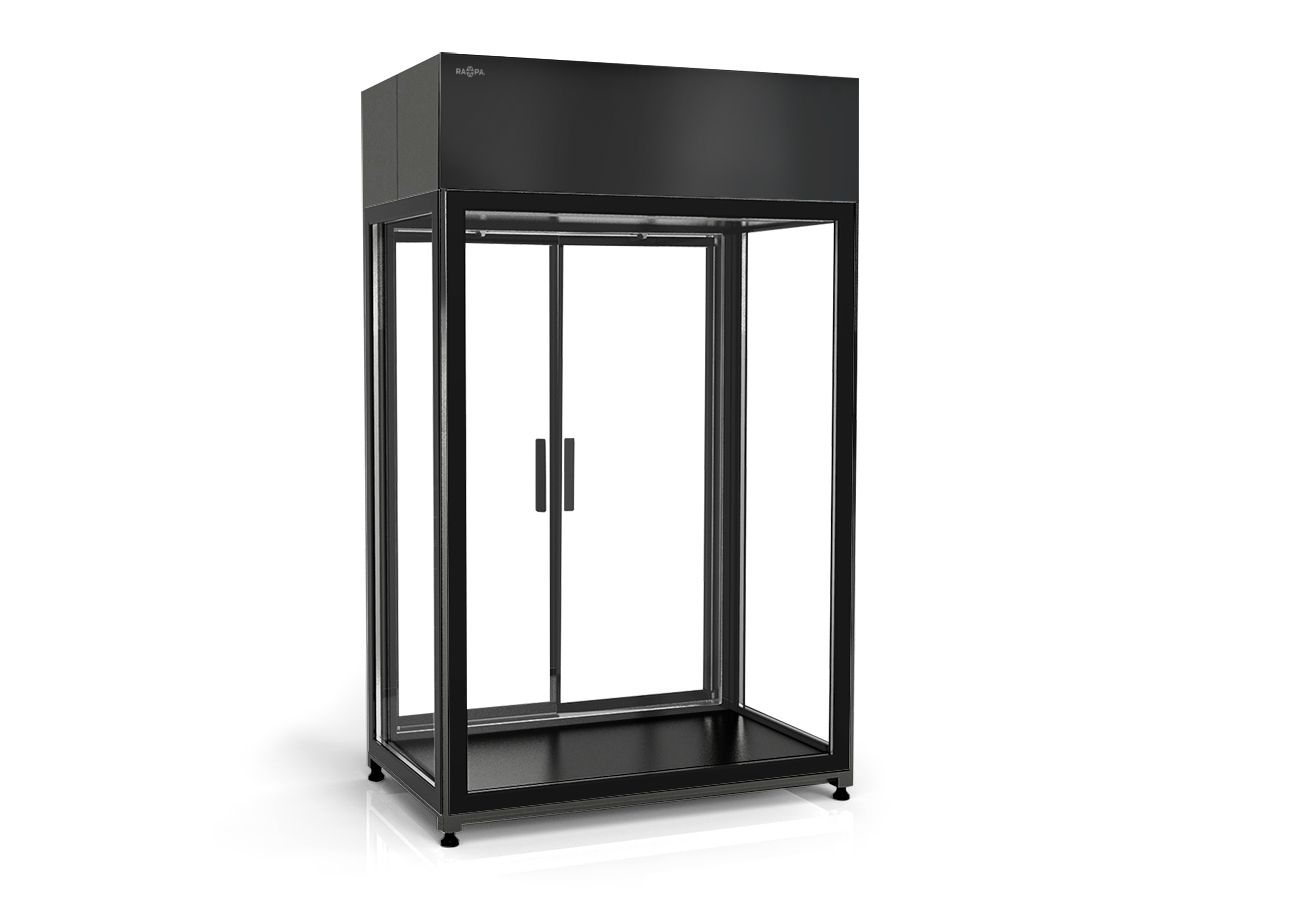

    Sliding glass doors with a loading lock, self-closing
  • icon
    LED lighting
  • icon
    Panoramic front glass pane
  • icon
    Device glazed from four sides
  • icon
    All panes made of combined, double tempered glass (low-E)
  • icon

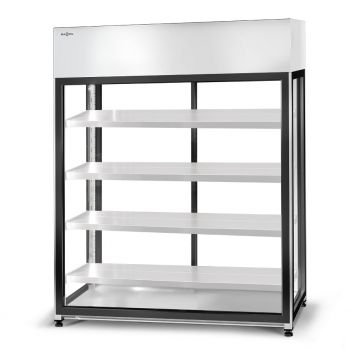

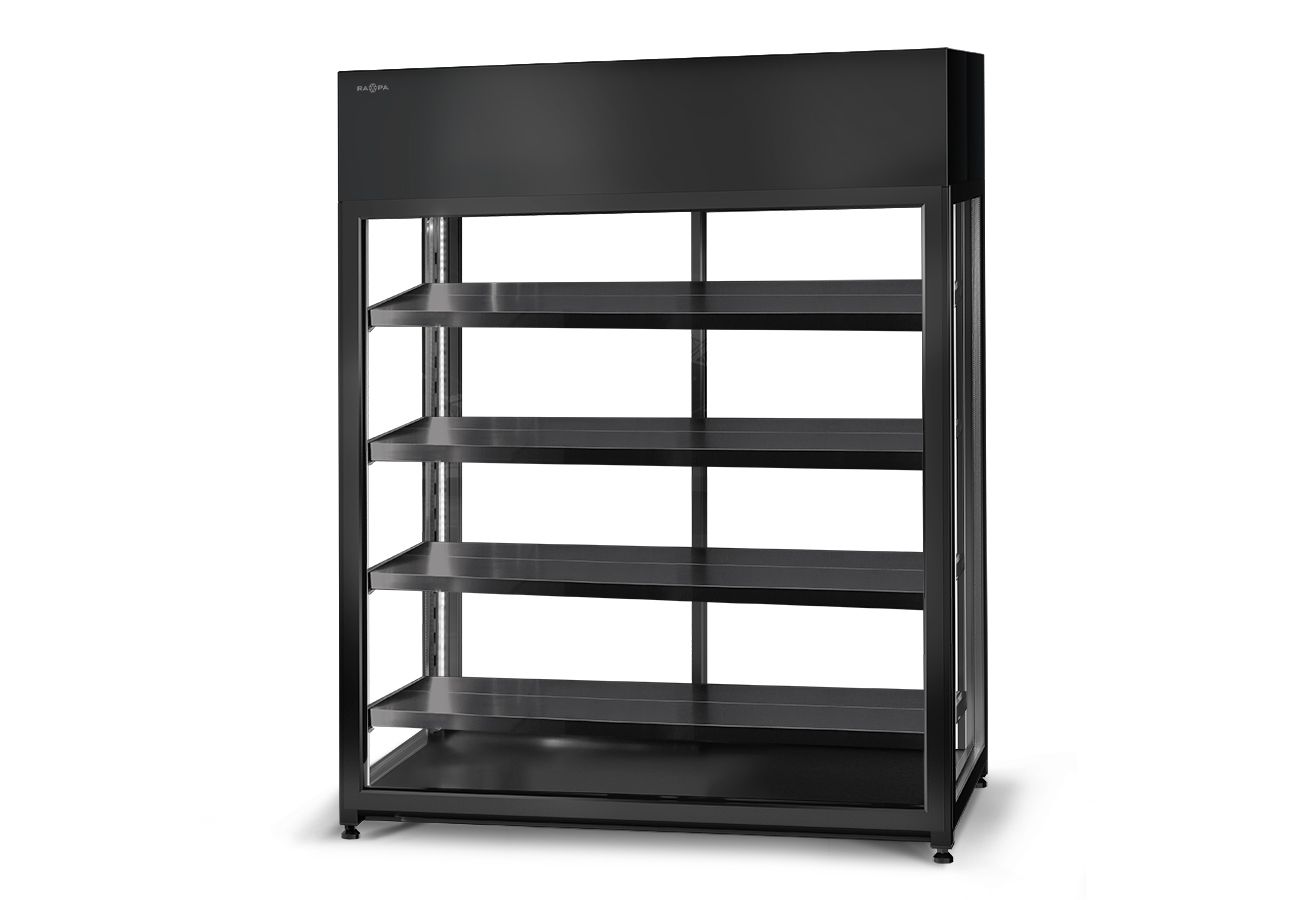

    4 levels of regulated shelves with runners made of “linen” stainless steel, painted in a selected color from the RAPA color chart
Show equipment detailsHide details

Additional equipment

-

  • icon
    -
  • icon
    -

Accessories

  • icon
    USB temperature recorder (wireless)
  • icon
    Pollen filter
  • icon
    Stool 20 cm hight - inox
  • icon
    Stool 40 cm hight - inox
  • icon
    Stool 60 cm hight - inox
  • icon
    Painting of stool
  • icon
    1 level of regulated shelves with runners - inox
  • icon
    Painting of 1 level of regulated shelves with runners
Show equipment detailsShow equipment details

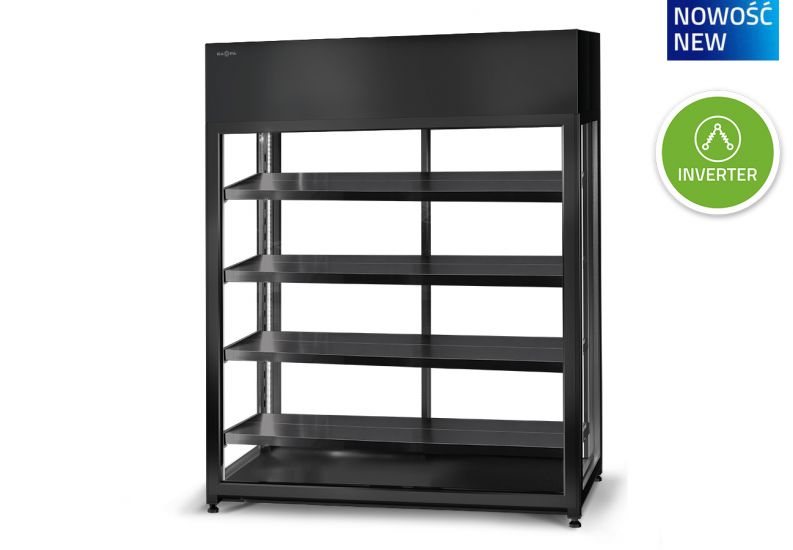

Parameters AKM inverter
temperatures range 3H1  +1°C ÷ +10°C (3 cl.)
refrigerant (HC) R-290
rated voltage 230 V~ / 50 Hz
rated power 280 ÷ 640 W
defrosting automatic
condensate drain into a container with a valve
model AKM 1205 AKM 1405 AKM 1605 AKM 1805 AKM 2005 AKM 2205
width [cm] 120,5 140,5 160,5 180,5 200,5 220,5
exposition width [cm] 110 130 150 170 190 210
depth [cm] 74,5 74,5 74,5 74,5 74,5 74,5
exposition depth [cm] 62 62 62 62 62 62
height - without platform [cm] 199 199 199 199 199 199
height - with platform [cm] 230 230 230 230 230 230
exposition height [cm] 150 150 150 150 150 150
energy class plug-in inverter

Attention: after replacing legs for wheels, the height of the device is 204 cm, with a platform 234,5 cm

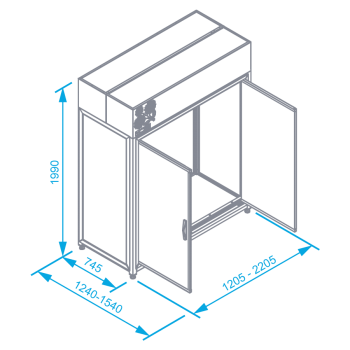

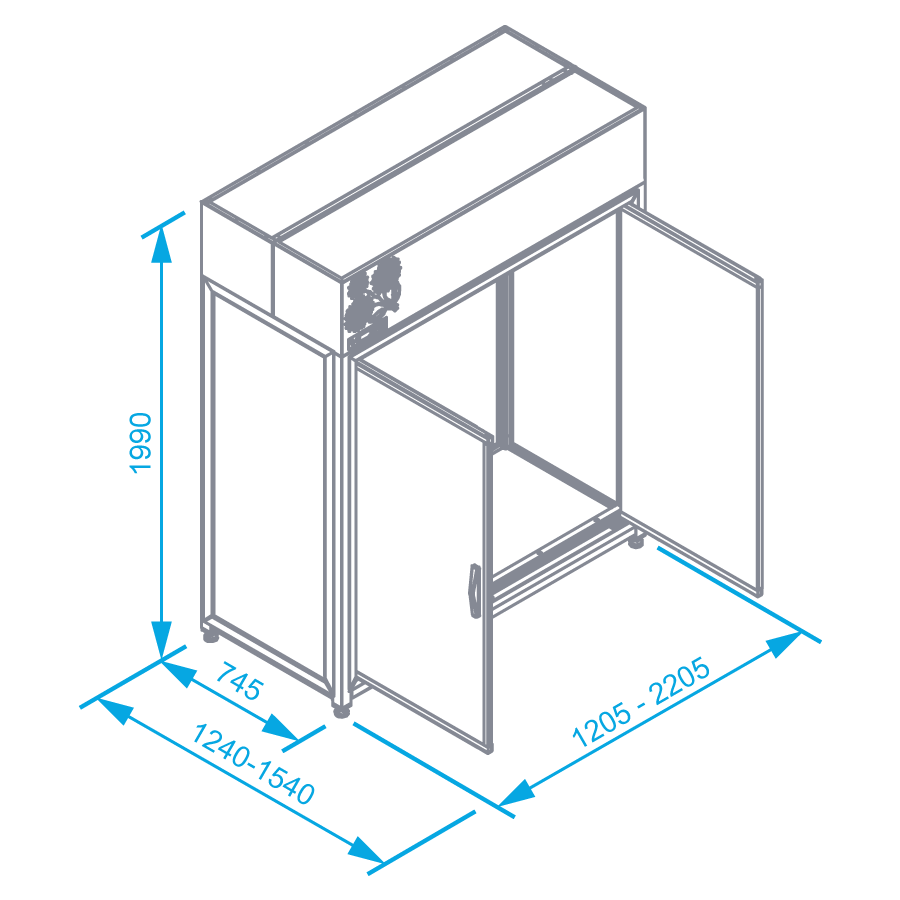

Technical drawings
